VECTOR LOCK

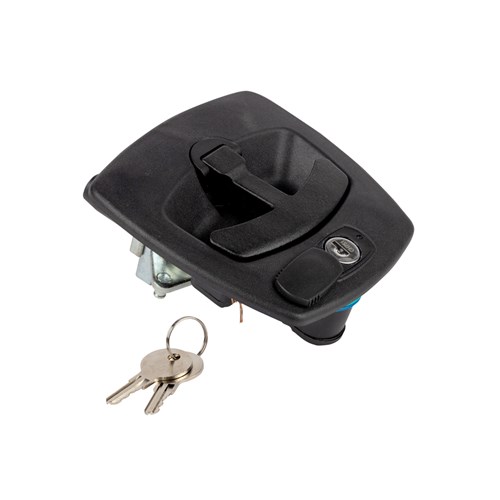

Electronic Vector T3 Locking Handle- 24V Black - CH751

Code:
DTVL275B-24V
In Stock 34 units
$263.92 inc GST
Increase value Decrease value


Stock Availability:
  • NSW: 6 units
  • VIC: 18 units
  • QLD: 10 units
  • SA: 0 units
  • WA: 0 units
  • NT: 0 units
  • STM: 0 units
Weight (kg)
0.76
Applications
Qty Each (inc GST) Each
  • Specifications
  • Material and Finish
  • Features
  • Contact Us

  • Dimensions: 126.2W x 129.7mm L
  • Weight: 680g
  • Voltage: 24VDC/2A
  • Colour: Black powder coat
  • Handle: Black texture powder coat
  • Cam: Adjustable 3 point roller cam
  • Keyed: CH751
  • Certifications: IP65, DIN EN 61373
  • Optional sensor output
    • Sensor 1 Handle unlocked – open circuit, handle locked – closed circuit (max 30VDC/500mA).
    • Sensor 2 Handle open – open circuit, handle closed – closed circuit (max 30VDC/500mA, total max 10W).
  • Opening rotation
    • Two- and three-point cams combined with adapter cannot be used with handles with clockwise or 180º rotation.
    • Using two- and three-point cams without adapter works with all opening rotations.
  •  Protection internal electronics
    • The internal enclosure for the electronics inside the Vector T3 meets IP44 (tested with cable entry facing downwards).
  • Maximum tightening torque: 2,2 Nm

  • Adjustable cam: Zinc die cast, passivated
  • Body: Glass fibre reinforced polyamide (PA6GF30)
  • Cast-in bolts: Steel, black passivated
  • Cylinder: Zinc die cast, stainless steel 304 cap and dust shutter
  • Dust cover, black: Glass fibre reinforced polyamide (PA6GF30)
  • Handle: Stainless steel 304, polished or zinc die cast, black texture powder coated
  • Roller: Glass fibre reinforced polyamide (PA6GF30)
  • Rotating locking device: Stainless steel 303
  • Shaft: Stainless steel 303

  • Compact Dimensions– Ensures a sleek fit for various applications without compromising security.
  • Lightweight Design – Reduces overall hardware weight while maintaining durability.
  • 24VDC/2A Voltage – Compatible with standard vehicle and enclosure power systems for seamless integration.
  • Durable Black Powder Coat Finish – Provides corrosion resistance and a professional, modern appearance.
  • IP65 Rated & DIN EN 61373 Certified – Built to withstand dust, water, and vibration, ideal for rugged environments.
  • Optional Sensor Output – Allows integration with monitoring systems for enhanced security control.
  • Dual Sensor Functions – Detects both handle position and lock status for real-time security feedback.
  • Flexible Opening Rotation – Works with two- and three-point cams without adapters for versatile installation.
  • Protected Internal Electronics (IP44) – Safeguards electronic components against environmental elements.
